MM-4023F-1250-AL0-A
MM-4029E-0600-ABML0
AC:100-240/50-60Hz 0.24A/29W Max
PF≥0.9
DC:25-42V/600mA,300mA 25W Max
Ta：50℃，Tc：90℃
特点：高效率，高PF值，低谐波，无频闪，0-10V调光，电阻调光，PWM调光,拨码调电流
质保期限：三年，五年质保需提供整灯评估
认证类型：SAA

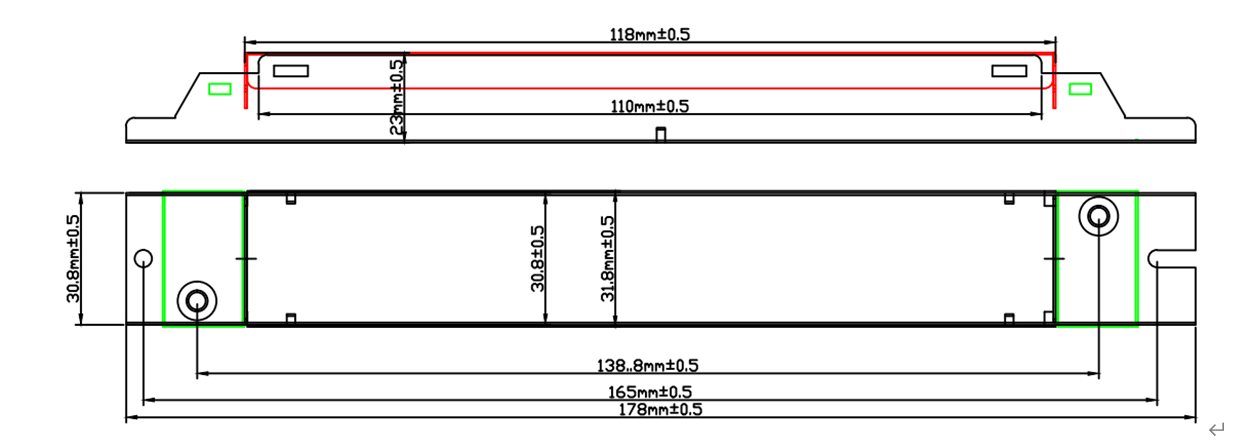

Shape size and vacancy diagram
单位：MM
Introduction to Functions
※0-10V DC电压
调光电压 | 0V | 1V | 2V | 3V | 4V | 5V | 6V | 7V | 8V | 9V | 10V |
输出电流 | 0 | 10% | 20% | 30% | 40% | 50% | 60% | 75% | 85% | 100% | 100% |
※10V PWM信号（频率范围100Hz-3KHz）
PWM信号 | 0 | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% |
输出电流 | 0 | 10% | 20% | 30% | 40% | 50% | 60% | 75% | 85% | 100% | 100% |
※电阻（0-100KΩ可调电阻）
电阻阻值 | 0Ω | 10K | 20K | 30K | 40K | 50K | 60K | 70K | 80K | 90K | 100K |
输出电流 | 0 | 10% | 20% | 30% | 40% | 50% | 60% | 75% | 85% | 100% | 100% |

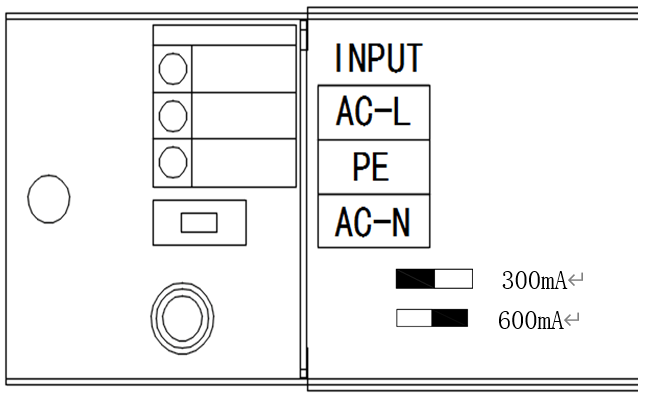

※拨码调电流
